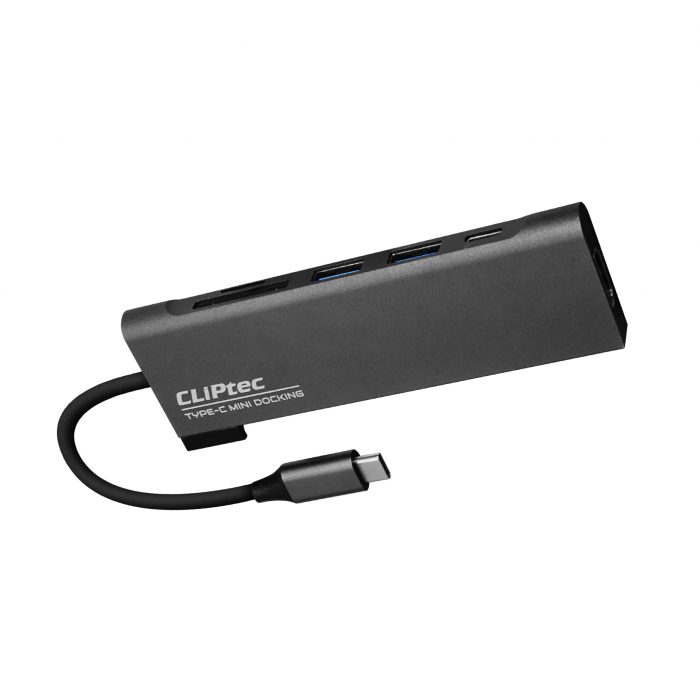

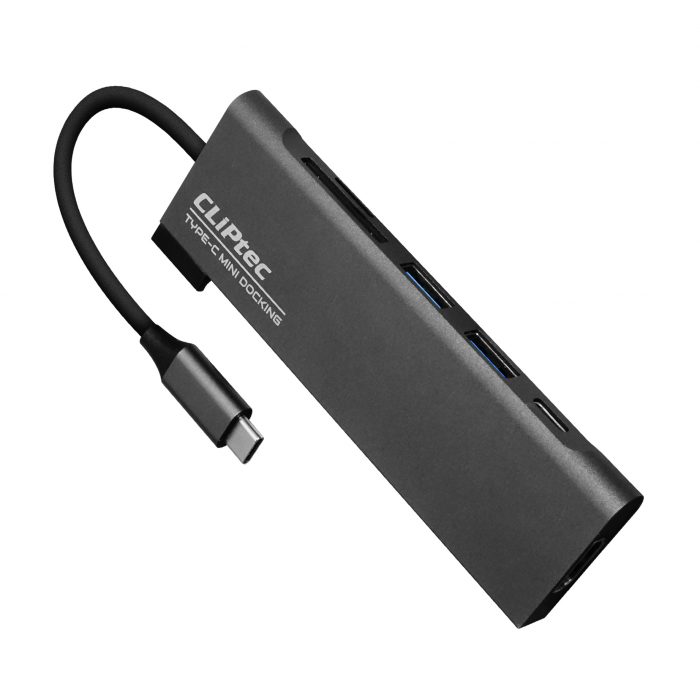

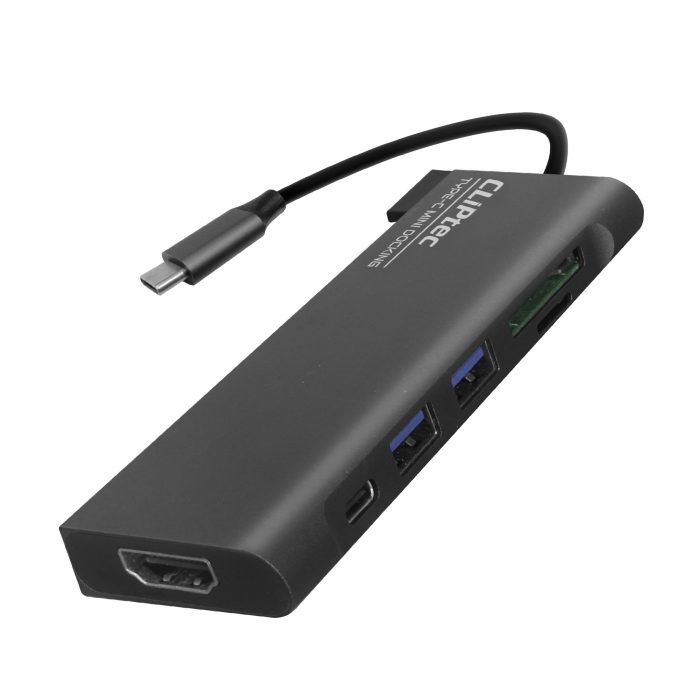

CLIPTEC RZH722 TYPE-C TO 6IN1 PORTABLE MINI DOCKING (DOCK VIEW-6) - GREY

RZH722 Type-C to 6-in-1 Portable Mini Docking (DockView-6)



Description

CLiPtec RZH-722 TYPE-C 6 in 1 Portable Mini Docking is offering 1 port of HDMI 1.4, 2 port of USB3.1Gen 1, 1 ports of Type –C and 1 port of SD and Micro SD card reader port. It also backwards compatible with both USB 1.1 and 2.0 specifications. USB 3.1 (Gen 1) is the latest generation technology with (Super Speed), where speeds reach up to 10x faster than High-Speed USB (USB2.0), it delivers ultra-fast USB 3.1 (Gen 1) data transfer rates of up to 5Gbps. The Hot-swapping feature allows you to connect/disconnect devices without powering down the system.

Product Features

  1. Fully compliant with Universal Serial Bus 3.1 (Gen 1) Specification.
  2. Backwards Compatible with USB 2.0 and 1.1 devices.
  3. USB 3.1 (Gen 1) transfer rates maximum up to 5.0Gbps, (Full-speed12Mbps/ High-speed 480Mbps/ Super-speed 5.0Gbps)
  4. Supported PD 2.0 charge for your laptop and up to 100W (max), can be used for data transferring and charging simultaneously.
  5. Supported 4K*2K@30HZ (up to 3840*2160@24/25/30HZ & 4096*2160@24hz.
  6. Supported SD/SDHC/SDXC/MMC/RSMMC/Micro SD/Micro SDHC/Micro SDXC memory card transfer rate up to 104MB/S(UHS-I )
  7. No Device Driver Required for Hub installation, plug and play.
  8. Hot-swapping feature allows you to connect/disconnect devices without powering down the system.
Product Specification
Host Connector USB-C plug
Interface Type C to 2ports Type A+1port Type C+ HDMI+SD/TF
Type A Port USB3.1 GEN 1, backward compatible to USB 2.0 and USB 1.1.
Transfer rate: 5Gbps/ USB3.1 GEN1; 480Mbps/ USB2.0; 12Mbps/ USB1.1
Type C Port PD 2.0 version charging up to 100W
Transfer rate: 5Gbps/ USB3.1 GEN1; 480Mbps/ USB2.0; 12Mbps/ USB1.1
HDMI HDMI 1.4
Support 4K*2K@30HZ (up to 3840*2160@24/25/30HZ & 4096*2160@24hz)
Card Reader SD/SDHC/SDXC/MMC/RSMMC/Micro SD/Micro SDHC/Micro SDXC.
Transfer rate:UHS-I (<=104MB/S)
Dimension 116.8(L) x 36(W) x 10.8(H) mm
Weight 53g
Operating Temperature 0 to 70 °C
Storage Temperature -40 to 85 °C
Operating System Support Microsoft-Win7 (32bits and 64 bits), Win8, Win8.1, Win10 Apple MAC-Mac OS X v10.1 and later versions
Attached cable Length 10cm+/- 1cm (Not included connector)
