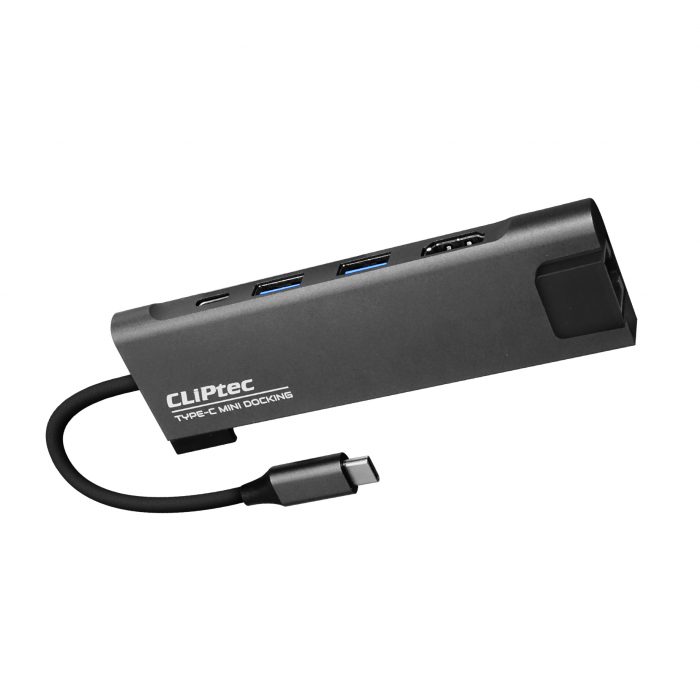

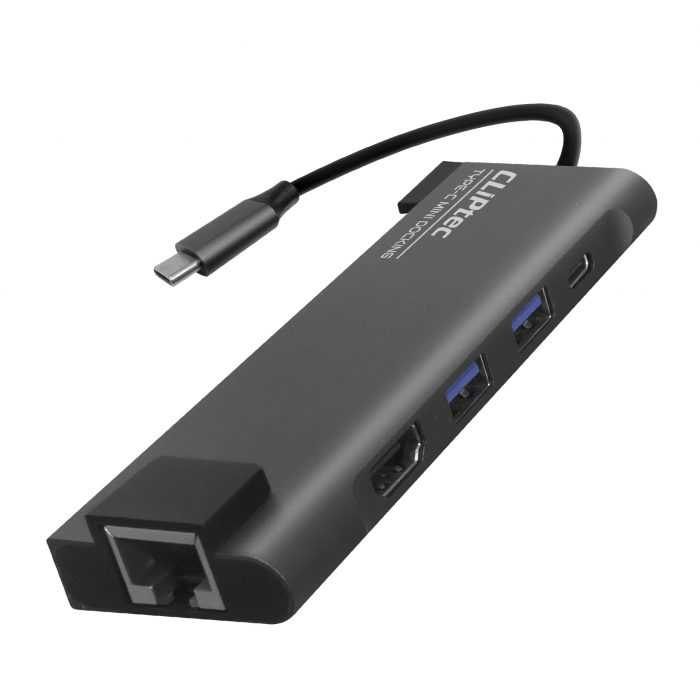

CLIPTEC RZH731 TYPE-C TO 5IN1 PORTABLE MINI DOCKING (VIEW NET-5) - GREY

RZH731 Type-C to 5-in-1 Portable Mini Docking (ViewNet-5)



Description

CLiPtec RZH-731 TYPE-C 5 in 1 Portable Mini Docking is offering 1 port of HDMI 1.4, 2 port of USB3.1 Gen 1 and 1 ports Type–C and 1 port Ethernet 10/100/1000. It also backwards compatible with both USB 1.1 and 2.0 specifications. USB 3.1 (Gen 1) is the latest generation technology with (Super Speed), where speeds reach up to 10x faster than High-Speed USB (USB2.0), it delivers ultra-fast USB 3.1 (Gen 1) data transfer rates of up to 5Gbps. The Hot-swapping feature allows you to connect/disconnect devices without powering down the system.

Product Features

  1. Fully compliant with Universal Serial Bus 3.1 (Gen 1) Specification.
  2. Backwards Compatible with USB2.0 and 1.1 devices.
  3. USB 3.1 (Gen 1) transfer rates maximum up to 5.0Gbps, (Full-speed12Mbps/ High-speed 480Mbps/ Super-speed 5.0Gbps)
  4. Supported PD 2.0 charge for your laptop and up to 100W (max), can be used for data transferring and charging simultaneously.
  5. Supported 4K*2K@30HZ (up to 3840*2160@24/25/30HZ & 4096*2160@24hz)
  6. Supported Full 10/100/1000 Mbps Fast Ethernet performance.
  7. No Device Driver Required for Hub installation, plug and play.
  8. Hot-swapping feature allows you to connect/disconnect devices without powering down the system.
  9. No driver install required on Win8, Win8.1, Win10, Apple Mac OS X.
  10. On other operation system, drivers can be installed from the virtual drives when product connected to PC, no need additional.







Product Specification
Host Connector USB-C plug

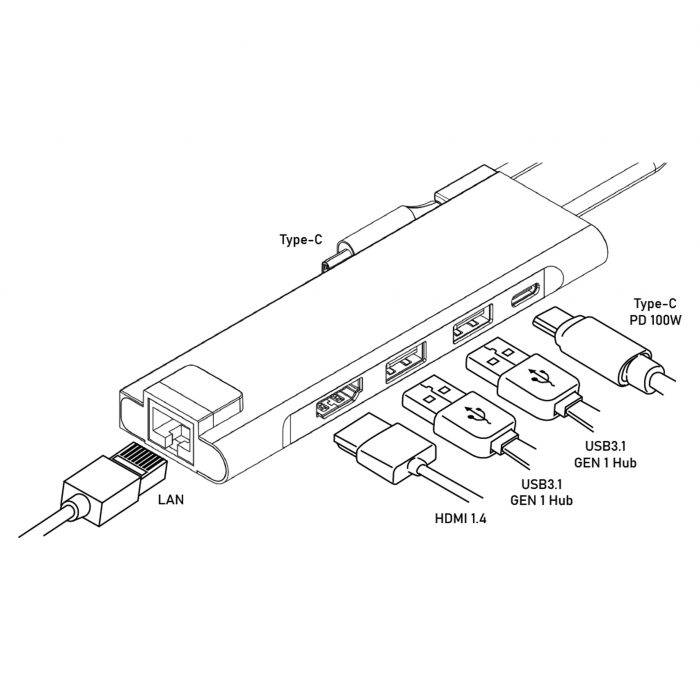

Interface Type C to 2ports Type A+1port Type C+ HDMI+Lan
Type A Port USB3.1 GEN 1, backward compatible to USB 2.0 and USB 1.1.
Transfer rate: 5Gbps/ USB3.1 GEN1; 480Mbps/ USB2.0; 12Mbps/ USB1.1
Type C Port PD 2.0 version charging up to 100W
Transfer rate: 5Gbps/ USB3.1 GEN1; 480Mbps/ USB2.0; 12Mbps/ USB1.1
HDMI HDMI 1.4
Support 4K*2K@30HZ (up to 3840*2160@24/25/30HZ & 4096*2160@24hz)
LAN Full 10/100/1000 Mbps Fast Ethernet performance
Dimension 121(L) x 36(W) x 14.9(H) mm
Weight 55g
Operating Temperature 0 to 70 °C
Storage Temperature -40 to 85 °C
Operating System Support Microsoft-Win7 (32bits and 64 bits), Win8, Win8.1, Win10 Apple MAC-Mac OS X v10.1 and later versions
Attached cable Length 10cm+/- 1cm (Not included connector)
